Developer tools

Open Developer Tools from the project sidebar. Every graph and policy in the scope you’re viewing - branch, commit, release, or environment - is callable as an HTTP endpoint. The page lists each document’s endpoint, request and response schemas, ready-made payloads, and integration snippets.

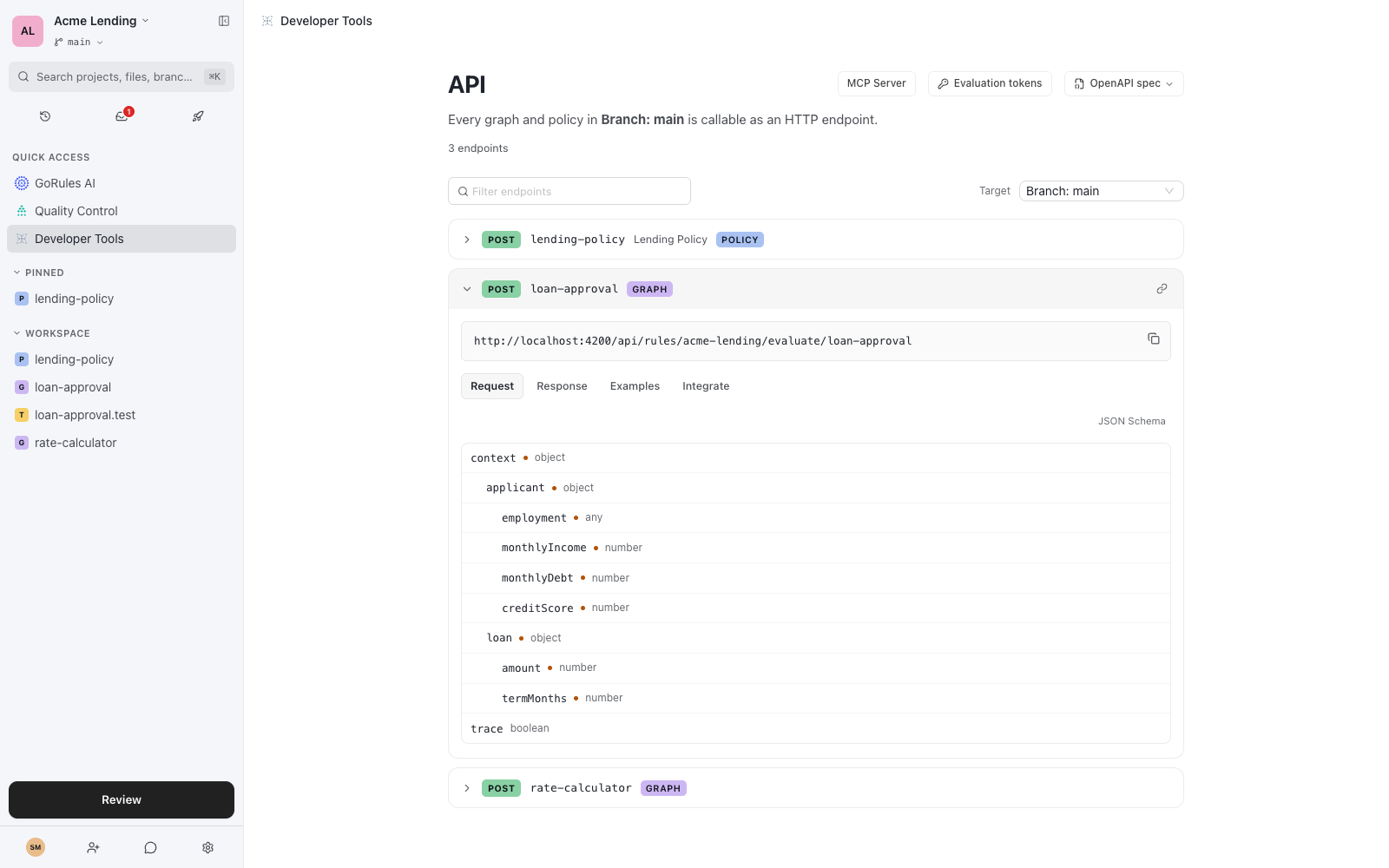

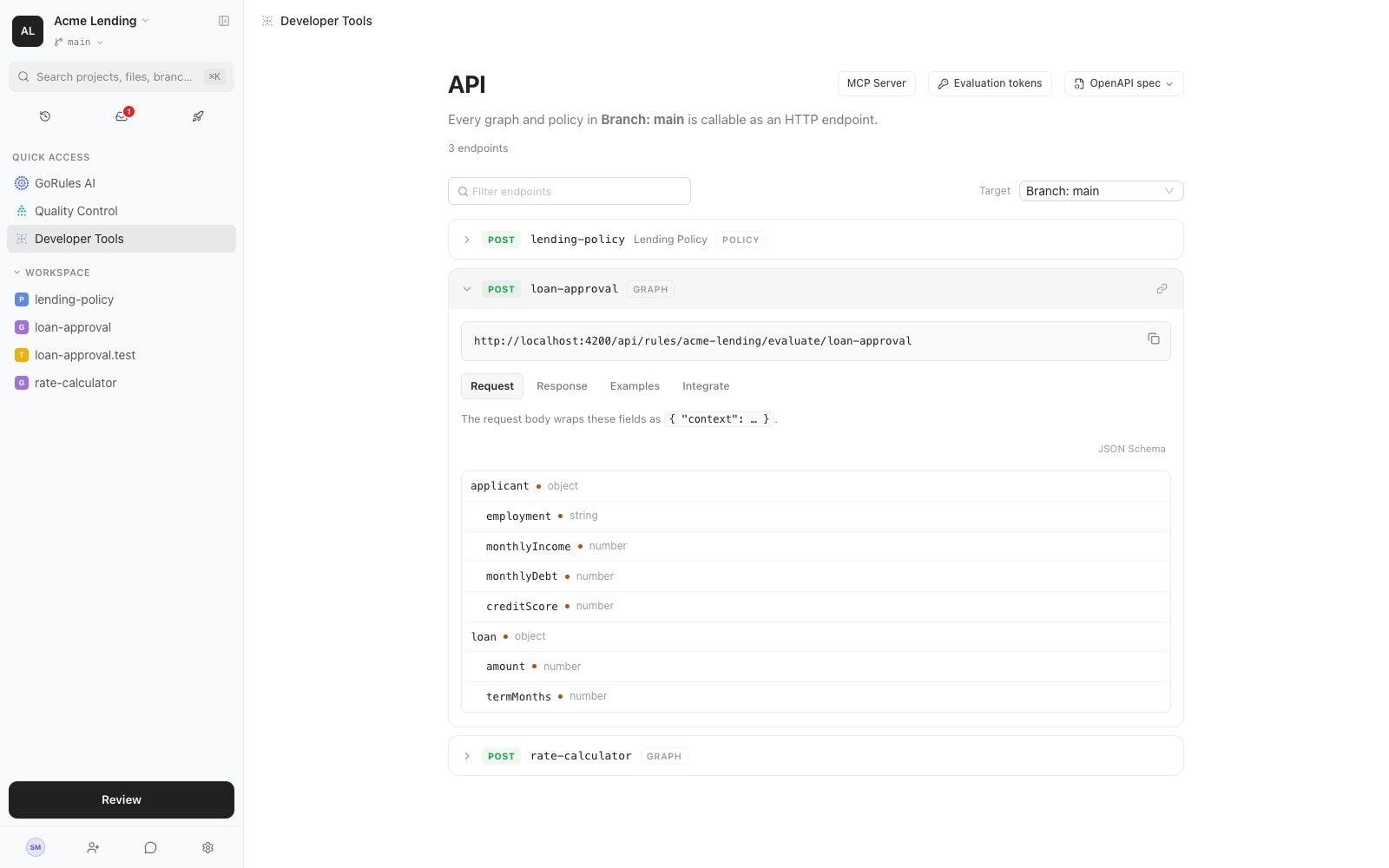

Developer Tools page listing graph and policy endpoints with request, response, and integration tabs — The API explorer in Developer Tools.

Evaluate a decision

All evaluation endpoints accept POST with the input wrapped in context, and authenticate with a project access token in the X-Access-Token header:

curl -X POST "https://brms.example.com/api/rules/acme-lending/evaluate/loan-approval" \
  -H "X-Access-Token: $GORULES_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "context": {
      "applicant": { "employment": "EMPLOYED", "monthlyIncome": 6500, "monthlyDebt": 1200, "creditScore": 760 },
      "loan": { "amount": 25000, "termMonths": 60 }
    },
    "trace": false
  }'

const response = await fetch(
  "https://brms.example.com/api/rules/acme-lending/evaluate/loan-approval",
  {
    method: "POST",
    headers: {
      "X-Access-Token": process.env.GORULES_TOKEN,
      "Content-Type": "application/json",
    },
    body: JSON.stringify({
      context: {
        applicant: { employment: "EMPLOYED", monthlyIncome: 6500, monthlyDebt: 1200, creditScore: 760 },
        loan: { amount: 25000, termMonths: 60 },
      },
      trace: false,
    }),
  },
);

if (!response.ok) {
  throw new Error(`Evaluation failed: ${response.status}`);
}

const { result } = await response.json();

import os
import requests

response = requests.post(
    "https://brms.example.com/api/rules/acme-lending/evaluate/loan-approval",
    headers={"X-Access-Token": os.environ["GORULES_TOKEN"]},
    json={
        "context": {
            "applicant": {"employment": "EMPLOYED", "monthlyIncome": 6500, "monthlyDebt": 1200, "creditScore": 760},
            "loan": {"amount": 25000, "termMonths": 60},
        },
        "trace": False,
    },
)
response.raise_for_status()

result = response.json()["result"]

Response:

{
  "performance": "156.2µs",
  "result": {
    "status": "approved",
    "approved": true,
    "reason": "Approved at standard rate",
    "debtToIncome": 0.18
  }
}

Set "trace": true to include a per-node trace object with each node’s input, output, and execution time.

Endpoints

{projectId} accepts either the project ID or the project key (acme-lending above). {path} is the document’s path within the project, for example loan-approval or billing/invoice-validation.

Source	Endpoint
Main branch head	`POST /api/rules/{projectId}/evaluate/{path}`
Branch head	`POST /api/rules/{projectId}/branch/{branchId}/evaluate/{path}`
Commit	`POST /api/rules/{projectId}/commit/{commitId}/evaluate/{path}`
Release	`POST /api/rules/{projectId}/release/{releaseId}/evaluate/{path}`
Environment	`POST /api/rules/{projectId}/env/{environmentId}/evaluate/{path}`

A GET on each source root (the same URL without /evaluate/{path}) returns the OpenAPI document for that source. Point production integrations at an environment: deploying a release swaps the rules behind the endpoint with no client changes. Branch and commit endpoints evaluate draft content, which is useful for CI and pre-production testing.

API explorer

The Target selector switches every endpoint, schema, and snippet on the page between sources: Branch: main, any other branch, a commit, a release, an environment, or MCP Server (local). Each endpoint expands into four tabs:

Tab	Contents
Request	Input fields inferred from the document, with types and required flags; the body wraps them as `{ "context": … }`
Response	Output schema inferred from the document
Examples	Up to three payloads taken from test cases that reference the document, or a skeleton generated from the input schema when no tests exist
Integrate	Copy-paste snippets for cURL, Node.js, Python, Go, Rust, C#, Java, and Kotlin

The Native toggle on the Integrate tab switches snippets from HTTP calls to the embedded ZEN Engine, evaluating the same document in-process with the SDKs.

Evaluation tokens

Evaluation endpoints authenticate with project access tokens, generated in project settings. A token is either Full access or restricted with Custom scopes:

Allowed action	Grants
Evaluate	Run rules via the evaluation endpoints
List rules	Fetch the OpenAPI document for a source
Store traces	Persist evaluation traces

Custom-scoped tokens also narrow which evaluation targets they may hit: Branch/Commit (the main-branch head, any branch head, and pinned commits), Releases, or a specific environment. Nothing selected means all targets. A token without scopes has full access. On the API page, Evaluation tokens lists the tokens valid for the currently selected target, so you can copy one that will actually authorize the request.

Scope production tokens to a single environment with only the Evaluate action. A leaked token then can’t read rule definitions or evaluate draft content.

OpenAPI spec

The OpenAPI spec dropdown offers Download JSON, Copy spec URL, and Copy cURL for the selected target. The same document is served by the API:

curl "https://brms.example.com/api/rules/{projectId}/env/{environmentId}" \
  -H "X-Access-Token: $GORULES_TOKEN"

The spec contains one operation per graph and policy, with input and output JSON Schemas derived from the documents, examples pulled from test cases, and security declared as an apiKey scheme on the X-Access-Token header. Each operation carries an x-gorules extension with the document path, kind (graph or policy), a contentHash, hasInputSchema, and hasOutputSchema - enough metadata to drive client generators or your own tooling.

Generate typed clients

Because each operation’s context schema is derived from the document’s input schema, any OpenAPI code generator turns the spec into compile-time types for your rules. With openapi-typescript:

curl -H "X-Access-Token: $GORULES_TOKEN" \
  "https://brms.example.com/api/rules/acme-lending/env/production" -o rules-spec.json
npx openapi-typescript rules-spec.json -o rules.d.ts

Then evaluate with full type safety - wrong field names or types in context fail at compile time:

import createClient from 'openapi-fetch';
import type { paths } from './rules';

const client = createClient<paths>({
  baseUrl: 'https://brms.example.com/api/rules/acme-lending/env/production',
  headers: { 'X-Access-Token': process.env.GORULES_TOKEN },
});

const { data } = await client.POST('/evaluate/loan-approval', {
  body: {
    context: {
      applicant: { employment: 'EMPLOYED', monthlyIncome: 6500, monthlyDebt: 1200, creditScore: 760 },
      loan: { amount: 25000, termMonths: 60 },
    },
  },
});

The same spec feeds generators for other languages, and the generated context types are equally useful when evaluating in-process with the embedded SDKs. Point the generator at a release or environment source so types match what production serves, and use each operation’s x-gorules.contentHash to detect when rules changed and types need regenerating - a natural CI step.

Fields typed with a dictionary appear in the spec as {"$dictionary": "name"} - a GoRules extension, not standard JSON Schema. Evaluation enforces the dictionary’s values, but code generators don’t recognise the keyword and type such fields loosely.

MCP server

The MCP Server tab in Developer Tools bridges the browser workspace to AI agents such as Claude Code and Cursor through a local MCP endpoint.

npx @gorules/cli mcp start

The CLI starts on port 41919 and prints a one-time 8-character token. Paste it into the MCP Server tab; the browser asks once for Local Network Access permission. The session status moves from Not connected through Verifying to Connected (or Blocked if the browser denies local network access). A connected MCP client can:

Read workspace files for the scope you’re viewing - drafts, releases, or change requests.
Use the same tools as GoRules AI: add nodes, edit decision tables, plan changes.
Evaluate decisions with trace, performance, and intermediate state.

Traffic stays on localhost:41919 and tokens rotate every CLI session. For CLI flags and client configuration, see GoRules CLI and MCP integration.
